Kaka-1 Hotel robot Brief description

1.Appearance design

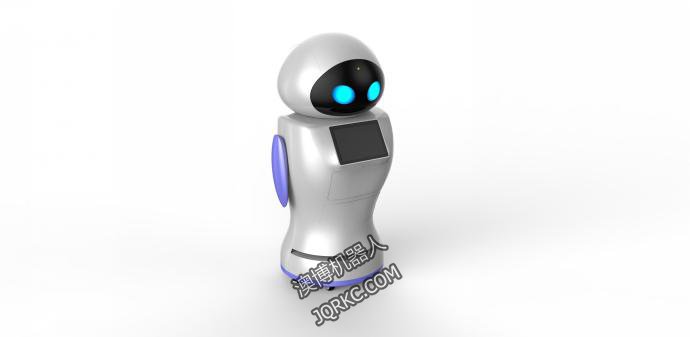

【1. Product photo】

【2. Appearance size drawing】

2. Application scene

Application scene	Hotel supplies delivered
Functions overview	Item transfer, data transfer etc
Custom scenario function steps	1、provide scenario requirements 2、consult if you can develop this feature 3、consulting development cycle 4、consulting development cost 5、Sign bespoke agreement 6、check and accept product function

3. Main function

	Function	Content
1	Hotel item transfer	The hotel front desk supplies can be transferred to the designated guest room
2	Three rooms at a time	The front desk staff can set up the robot to go to three different rooms in order at one time
3	Call a guest	The robot will call the guest's room when it comes to the guest's door, and inform the guest to get the daily necessities at the door
4	The robot gets up and down the elevator	When the robot walks to the elevator, it can control the elevator up and down to several floors, open and close the door, and also enter and leave the elevator.
5	Business consulting	Customize voice dialogue of hotel business content, answer all kinds of business consulting questions to customers, and be able to learn and optimize intelligently.
6	Face identification	If the customer's face information is set in advance, the robot will know the customer even years later, and will give the greeting by voice.
7	Fun chatting	Through the cloud and voice interaction, can achieve fun chatting; support for everyone, children's voice, cartoon pronunciation.
8	Independent charging	The robot will run out of power and will go back to the designated position to recharge。

PS：The above functions are suitable for proper use, and the effect is better.

4. Technical parameters

Model of robot	Kaka
Base parameters
Height	115cm	Weight	28kg
Screen	10．1 inch，Hd color LCD screen	Screen type	10 touch screen, capacitance
Screen resolution (dpi)	1920*1080 FULLHD	Camera	Two million pixels
Size(mm)	217*136 mm	Batteries and specifications	Polymer lithium battery 24V12AH
The face material	Acrylic material	Effect of the face	Eyes for LED lighting
Move mode	Wheeled, forward, backward and turning	Chassis structure	Triangular steel
Microphone	Four mic arrays, reduce noise	Loudspeaker	Dual speaker
Internet Connections	WIFI	Support bluetooth	Yes
Charging time (h)	≤8h（normal 6h）	Working Time (h)	≥8h
Rated input voltage (V)	220VAC	Rated output voltage (V)	24VDC
The distance of the human sensor to the guest	4～5m	Ultrasonic distance	1～2m
Rated output current (A)	2A	Rated power (W)	48W
Control parameter
Remote control walking	Control the walking of the robot from front to back through mobile APP and remote control;Response time is less than 100ms	Lidar navigation walks	Robots scan indoor lidar to build flat maps
Multipoint navigation	The robot can go to different points to explain, then go to the next point to explain different content	Voice control (optional)	The robot responds to voice commands and completes the requirements of moving around, playing songs and so on
Dialog system activation mode	Human sensor + ultrasonic sensor	Dialog system sleep time	The sensor was not responsive for 5min
Encounter obstacles	The robot will bypass obstacles and continue walking	Control mode	APP control, remote control, voice control
Business handling hardware
The way the robot makes phone calls	Voice of Internet Phone	Identify the elevator signal	FID card
The customer gets the item password	Enter the room	Navigation route information transmission	Wafai signal
Safety function
Emergency cut-off	To press the key to stop the working robot immediately	Detection of obstacle avoidance	Real-time monitoring of obstacles in front of the robot, measuring distance of 80 cm
Pedestrian detection	Real-time monitoring of no one passing by, someone coming to say hello	Balance protection	Body weight can be balanced and the waist won't fall
Convenience function
Remote voice play	Remote control robot plays audio file, audio file can be edited through text to audio software, easy to play the client propaganda voice	Remote operation mode switch	Robot remote control or tracking mode can be selected through mobile APP and remote control
Remote control adjustment parameters	APP control design sensor distance and walking speed	Set the node number	APP control to set the node number
Remote software upgrade	When the software is upgraded, the system automatically downloads the upgrade package, prompting the user to upgrade	Ultrasonic parameter	Forward two, left and right two, adjust and control respectively
Multimedia parameter
Picture	format：jpg resolution：1920*1080	Video frequency	format：mp3 frequency range: 32kbps-320kps
Video	format：mp4 resolution：1920*1080	Text	format：xml
Attachments
The standard of service	Instruction, warranty card, prompt label, daily maintenance	The standard packing	Pearl cotton, wooden case
The standard accessories	1 remote controller, 1 charger and 1 automatic charging pile	The standard tool	1 set of inner hexagon tool wrench and 1 set of outer hexagon tool wrench

5. Product configuration

Model number	Freight	Standard configuration	Optional
Kaka	Do not include, calculate freight according to specific area	1 remote control, 1 charger, 1 automatic charging pile, 1 set of hex tool wrench, 1 set of hex tool wrench and 1 wooden box	Flight case
